SM 102FP 1986 Feeder Timing Problem

Discussion in '4-Color Offset Presses +' started by dammkon, Nov 4, 2023.

  1. dammkon

    dammkon Member

    Joined:
    Nov 2023
    Messages:
    10
    Location:
    broujerd
    Hi
    i'm begginer in press and it s my first machine .
    here we had an operator that he has gone now and he was work with machine correctly . he start machine and when first sheet arrived to feeder he stop the machine and remove first paper and manually turnning operator inches then he strat machine and work well .
    but i dont know why he did this and how many paper should push to front layer
    also i know that i should Set Feeder Time in correct position
    but i dont know where is the degree and how can i found the start time degree

  2. junker1984

    junker1984 Senior Member

    Joined:
    Jan 2010
    Messages:
    1,160
    Location:
    US, Midwest
    As head stops have just reached their lowest position, sheet should be 8mm away.

  3. dammkon

    dammkon Member

    Joined:
    Nov 2023
    Messages:
    10
    Location:
    broujerd
    thanks for your reply
    ank position is true
    fuk position is true and seen in a corret position . my problem is timing feeder with machine

  4. junker1984

    junker1984 Senior Member

    Joined:
    Jan 2010
    Messages:
    1,160
    Location:
    US, Midwest
    “Timing feeder to machine” is a difficult procedure to explain, and involves lining up white marks on unit #1 oscillation adjustment and engaging drive chain in the proper position at feeder clutch.

  5. junker1984

    junker1984 Senior Member

    Joined:
    Jan 2010
    Messages:
    1,160
    Location:
    US, Midwest
    There are numerous adjustments at the feeder which may be causing you problems, like basic adjustment of feeder suction head, proper arrival of forwarding wheels to the forwarding roller, worn forwarding wheel bushings, worn bearings in drive tape idler shaft and proper positioning of guide wheels and racks. To list a few.

  6. Adil

    Adil Senior Member

    Joined:
    Nov 2021
    Messages:
    1,319
    Location:
    Casablanca
    Are you sure that you have a timing probleme please when the machine stop give me error on the MID monitor .
    And if you can take me a video of this operation it will be good .
    I think that you have a problem on the OS motor of oscilator or OS pneumatique cylinder of cylinder it deppend on your machine technologie .
    Give me video

  7. junker1984

    junker1984 Senior Member

    Joined:
    Jan 2010
    Messages:
    1,160
    Location:
    US, Midwest
    1986. Pre-CPTronic.

  8. dammkon

    dammkon Member

    Joined:
    Nov 2023
    Messages:
    10
    Location:
    broujerd
    Infact I dont know what's the problem .
    Ok I will send a video

  9. dammkon

    dammkon Member

    Joined:
    Nov 2023
    Messages:
    10
    Location:
    broujerd
    If it possible send me step by step adjustment
    For example how can I found time degree on machine because I have a document that tell me set on 333 degree with edge 2 of adjust disk
    I found the adjust disk but I couldn't find deegrees

  10. dammkon

    dammkon Member

    Joined:
    Nov 2023
    Messages:
    10
    Location:
    broujerd
    Cpc desk

  11. junker1984

    junker1984 Senior Member

    Joined:
    Jan 2010
    Messages:
    1,160
    Location:
    US, Midwest

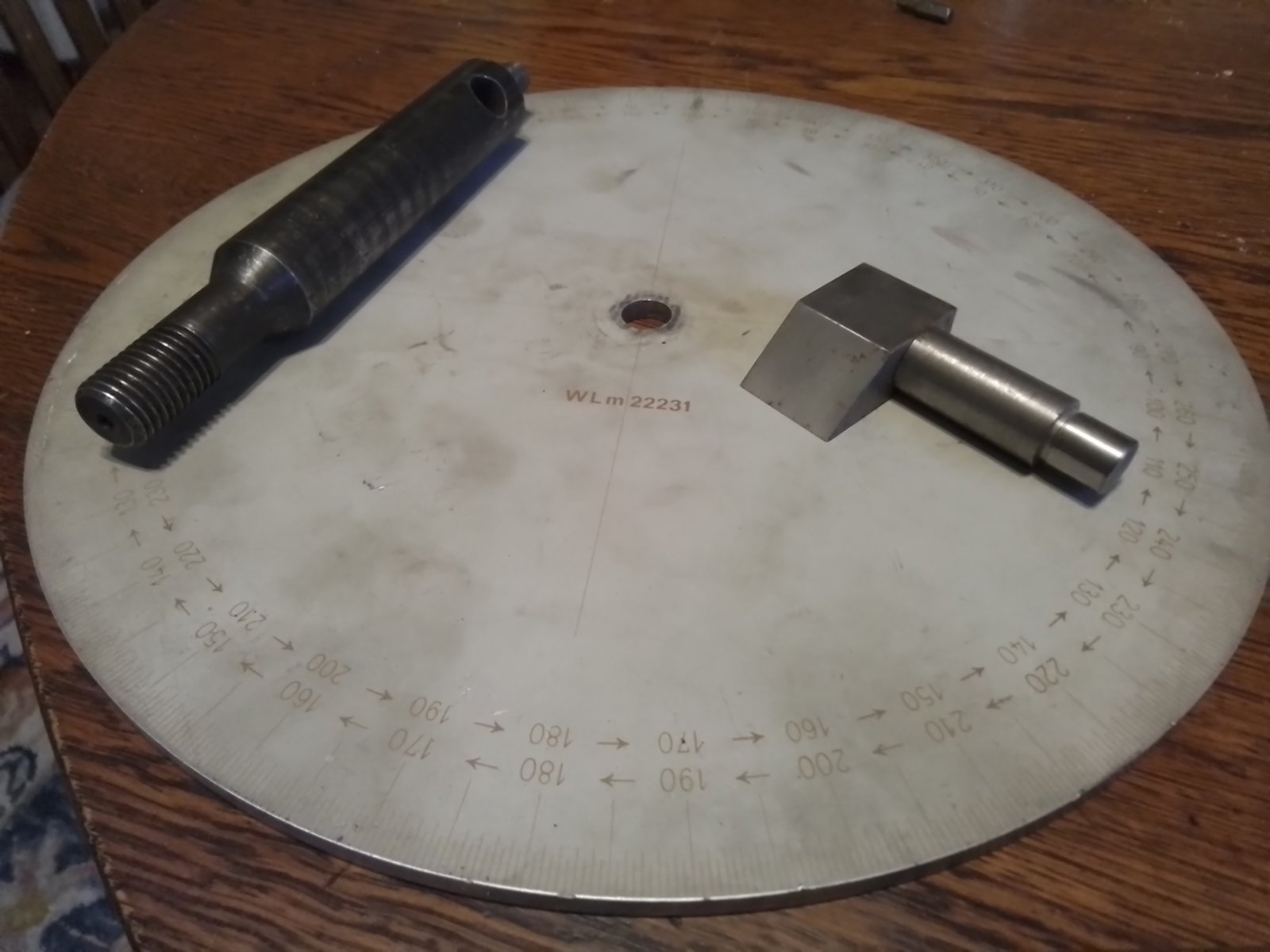

    1986 machine requires tooling that is available only to authorized Heidelberg Drukmachinen representatives. However, I'm sure by now, there are ways to acquire these tools. You must have a degree wheel, a degree wheel arbor and a zeroing flag.

  12. dammkon

    dammkon Member

    Joined:
    Nov 2023
    Messages:
    10
    Location:
    broujerd
    What's that tool. How can I found that or a map to make tool

  13. junker1984

    junker1984 Senior Member

    Joined:
    Jan 2010
    Messages:
    1,160
    Location:
    US, Midwest

    dammkon likes this.
  14. dammkon

    dammkon Member

    Joined:
    Nov 2023
    Messages:
    10
    Location:
    broujerd
    Good . Could you scan with computer and send me in a real size to plot and make like that

  15. junker1984

    junker1984 Senior Member

    Joined:
    Jan 2010
    Messages:
    1,160
    Location:
    US, Midwest
    I’m retired. I don’t have the capability.

  16. junker1984

    junker1984 Senior Member

    Joined:
    Jan 2010
    Messages:
    1,160
    Location:
    US, Midwest
    Besides that, you should really locate an individual that knows these older machines to examine it for mechanical faults. I’m not convinced, due to 30 years of experience, that you have an answering switch problem.

    dammkon likes this.
  17. dammkon

    dammkon Member

    Joined:
    Nov 2023
    Messages:
    10
    Location:
    broujerd
    Ok
    Thanks .if it possible do it for me .
    Now I know what am I need

  18. turbotom1052

    turbotom1052 Senior Member

    Joined:
    Oct 2008
    Messages:
    1,096
    Location:
    Vermont
    An automotive engine degree wheel will suffice. A suitable arbor shouldn't be too hard to fab up with appropriate hardware, and a pointer can be made with a wire coat hanger that has been sharpened to a point on the pointing end. The actual procedure as mentioned by Junker will be the hard part!!! Elimination of all the other factors that can be causing your problem would be the way to start. The proper timing spec of the sheet to the front lays would be the LAST step in the process and only after your certain that all the functions that Junker has mentioned have been verified as correct.

    dammkon likes this.
  19. Adil

    Adil Senior Member

    Joined:
    Nov 2021
    Messages:
    1,319
    Location:
    Casablanca
    Please , take a video to see really what happens


  20. dammkon

    dammkon Member

    Joined:
    Nov 2023
    Messages:
    10
    Location:
    broujerd
    helo-thanks all person that help me . its done .
